Back to overview
Data Projectors › InLine
Basic Information
ManufacturerInLine
CategoryData Projectors
GTIN / EAN4043718341597
Product Code76660U
I am interested in this product

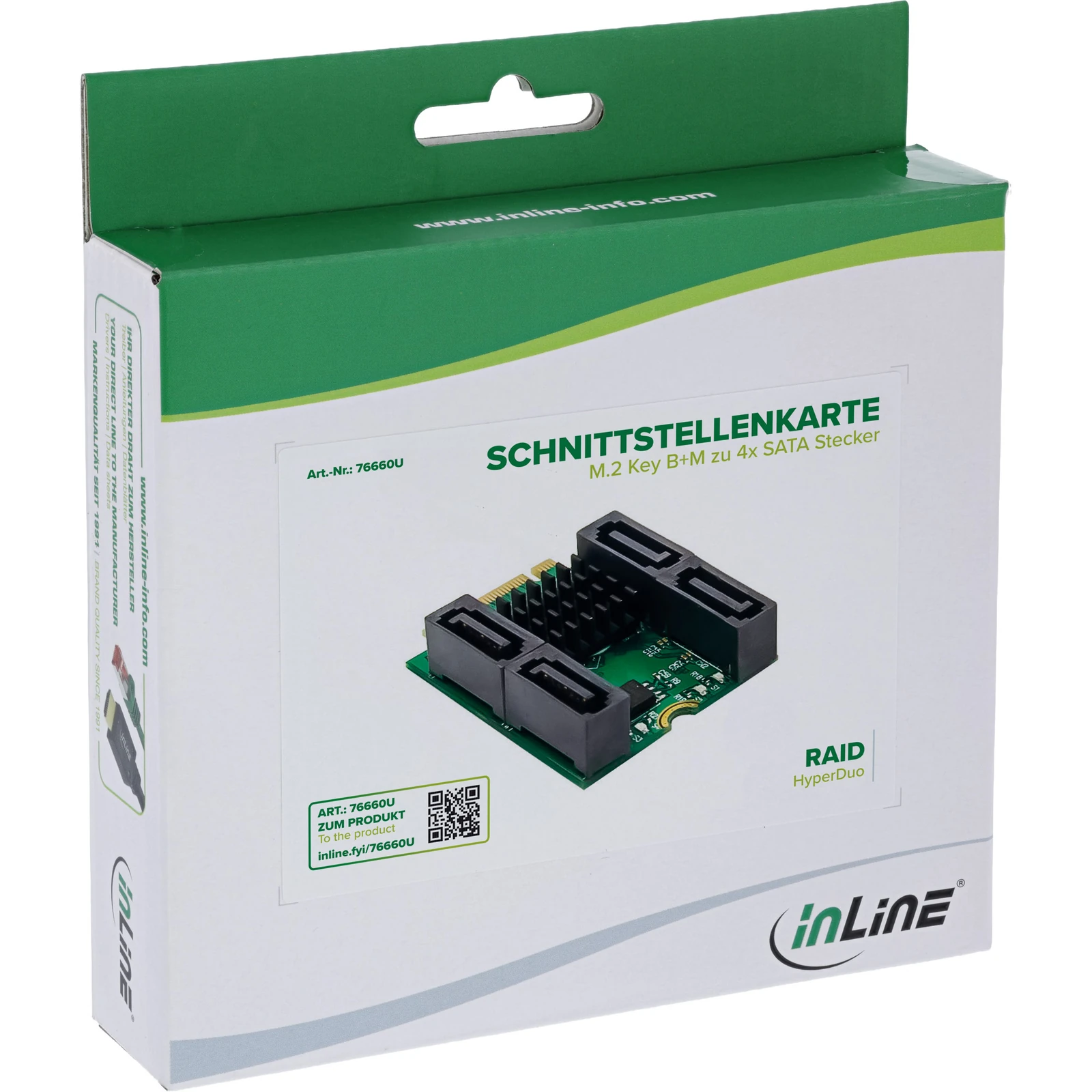

InLine 76660U
Technical Specifications
Ports & interfaces
| Host interface | M.2 |
| Host interface gender | Male |
| Output interface | SATA |
| NVMe | Yes |
| SATA revision | 3.0 |
Design
| Internal | Yes |
| LED indicators | Yes |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| Country of origin | Taiwan |
Features
| Chipset | Marvell 88SE9230 |
| Data transfer rate (max) | 6 Gbit/s |
| Native Command Queuing (NCQ) | Yes |
| RAID levels | 0, 1, 10 |
System requirements
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP |
| Linux operating systems supported | Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5 |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 |
Technical details
| Compliance certificates | TÜV mark, Federal Communications Commission (FCC), CE |
Weight & dimensions
| Width | 42 mm |
| Depth | 1.09 mm |
| Height | 30 mm |
| Weight | 1.1 kg |
Packaging data
| Cables included | SATA |
| Manual | Yes |
| Package width | 140 mm |
| Package depth | 33 mm |
| Package height | 155 mm |
| Package weight | 58 g |
| Package type | Hanging box |
Other features
| Dimensions (WxDxH) | 42 x 1.09 x 30 mm |
