Data Projectors › StarTech.com
Basic Information
ManufacturerStarTech.com
CategoryData Projectors
GTIN / EAN0065030903141
Product CodePS74ADF-SERIAL-CARD
I am interested in this product

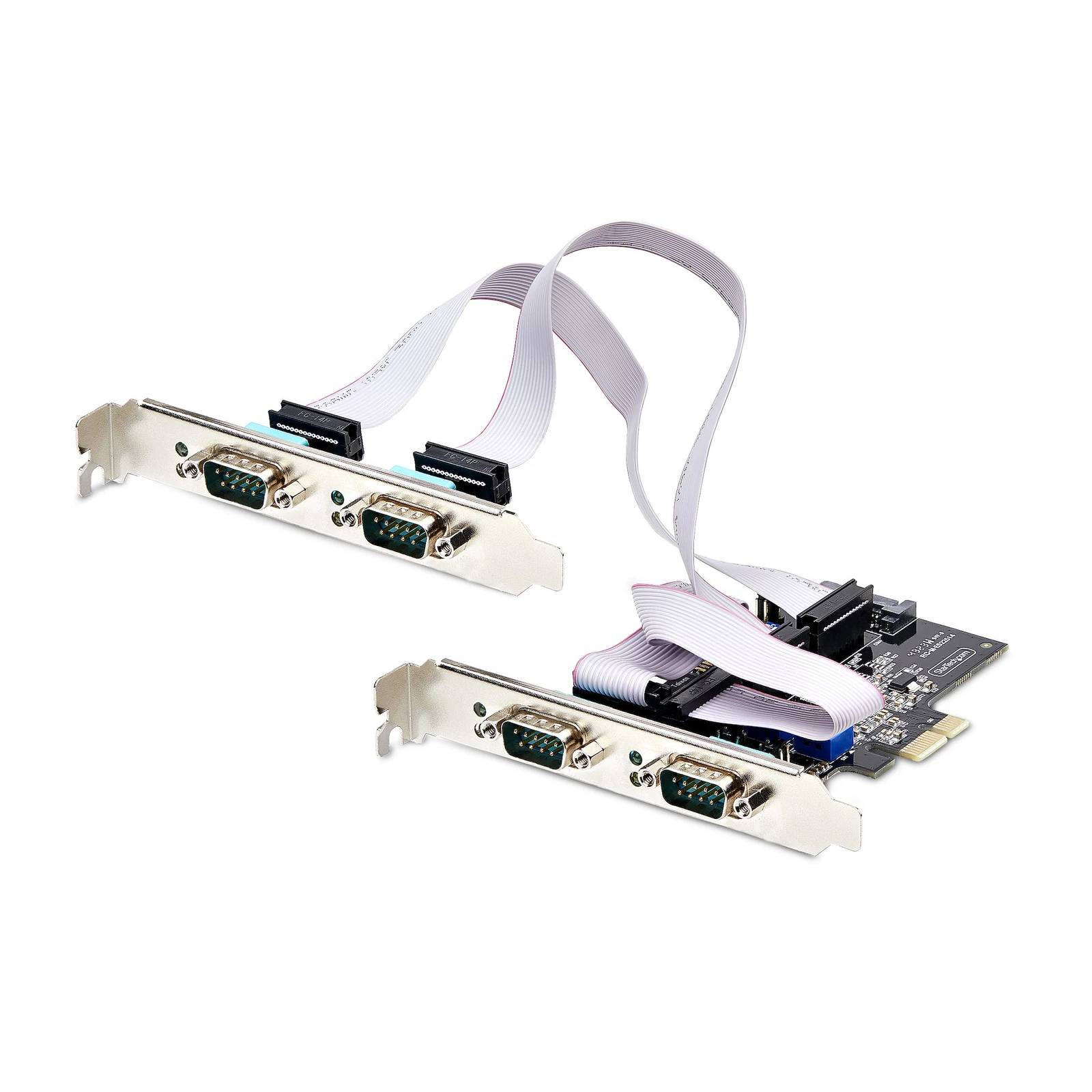

StarTech.com PS74ADF-SERIAL-CARD
Technical Specifications
Ports & interfaces
| Host interface | PCIe |
| Output interface | Serial |
| Serial ports quantity | 4 |
| Serial interface type | RS-232/422/485 |
Design
| Internal | Yes |
| Product colour | Black |
| LED indicators | Activity |
Features
| Chipset | ASIX - AX99100 |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Flow control support | Yes |
| Parity bit | Even, Mark, No, Odd, Space |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
Technical details
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
Weight & dimensions
| Width | 109 mm |
| Depth | 121 mm |
| Height | 16 mm |
| Weight | 60 g |
Packaging data
| Cables included | Ribbon cable |
| Mounting brackets included | Yes |
| User guide | Yes |
| Package width | 145 mm |
| Package depth | 212 mm |
| Package height | 40 mm |
| Package weight | 273.2 g |
Logistics data
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 685 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 306 mm |
Other features
| Cable length | 0.3 m |
| Electrostatic Discharge (ESD) protection | 15 kV |
